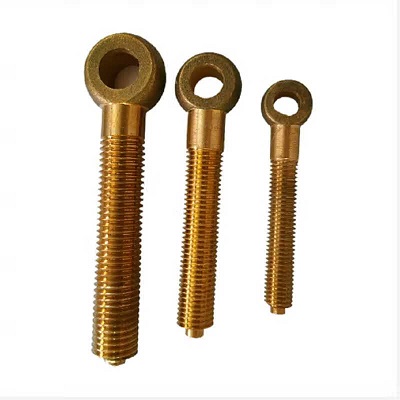

Eyebolts, also known as eye bolts, are specialized fasteners characterized by a loop or eye at one end, which allows for the attachment of ropes, chains, cables, or other load-bearing components. The other end typically features a threaded shank, enabling secure fastening into pre-drilled holes. This unique design makes them essential for applications involving suspension, hoisting, and rigging, providing a reliable connection point for transferring loads.
|
Standard
|
Country/Region
|
Description
|
|
ISO 3266
|
International
|
Defines dimensions, mechanical properties, and tolerances for general-purpose eyebolts
|
|
DIN 580
|
Germany
|
Specifies requirements for forged eyebolts, including material grades and load ratings
|
|
ASME B18.15
|
USA
|
Covers unified inch series eyebolts, detailing head styles and thread specifications
|
|
GB/T 798 - 1988
|
China
|
Details product specifications for metric eyebolts used in various industrial applications
|
|
JIS B 1169
|
Japan
|
Japanese standard for eyebolts, specifying dimensional and strength requirements
|
|
Grade
|
Material
|
Tensile Strength (MPa)
|
Application Scenarios
|
|
4.6
|
Low-carbon steel (e.g., Q215)
|
400/240
|
General-purpose light-duty lifting and securing tasks
|
|
4.8
|
Low-carbon steel (e.g., Q235)
|
400/320
|
Common industrial assembly, non-critical suspension applications
|
|
8.8
|
Medium-carbon steel (e.g., 45# steel)
|
800/640
|
Automotive lifting equipment, medium-duty industrial rigging
|
|
10.9
|
Alloy steel (e.g., 35CrMo)
|
1000/900
|
High-stress scenarios, such as heavy machinery hoisting
|
|
12.9
|
Alloy steel (e.g., 20MnTiB)
|
1200/1080
|
Extreme-load applications, aerospace component lifting
|
|

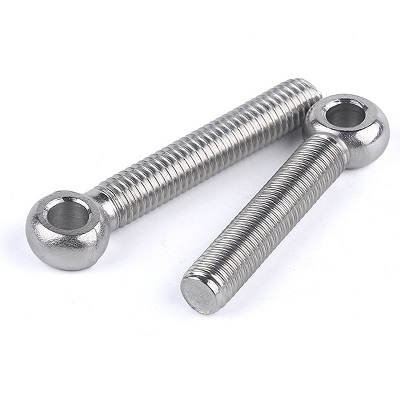

A2-70 (Stainless Steel)
|
304 stainless steel
|
700
|
Corrosion-resistant environments (marine, food processing)
|
|
A4-80 (Stainless Steel)
|
316 stainless steel
|
800
|
High-corrosion settings, chemical plants and coastal installations
|
|
Treatment Method
|
Abbreviation
|
Description
|
|

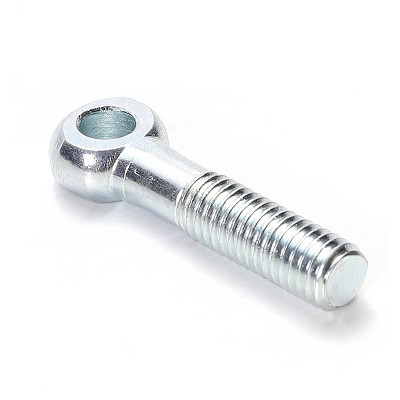

Zinc Plating
|
Zn
|
Provides basic rust protection; available in clear, blue, or yellow finishes
|
|
Hot-Dip Galvanizing
|
HDG
|
Offers superior corrosion resistance, ideal for outdoor and heavy-duty use
|
|
Chrome Plating
|
Cr
|
Enhances appearance and provides moderate corrosion resistance
|
|
Black Oxide Coating
|
Black
|
Creates a non-reflective, black surface with mild rust resistance, suitable for internal components
|
|
Dacromet Coating
|
Dacromet
|
Environmentally friendly, chromium-free coating with high corrosion and anti-galling properties
|
|
Electroplating
|
-
|
Deposits a thin, uniform layer for improved aesthetics and light corrosion protection
|
